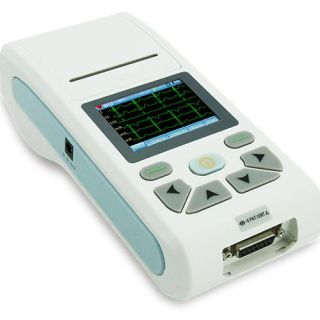

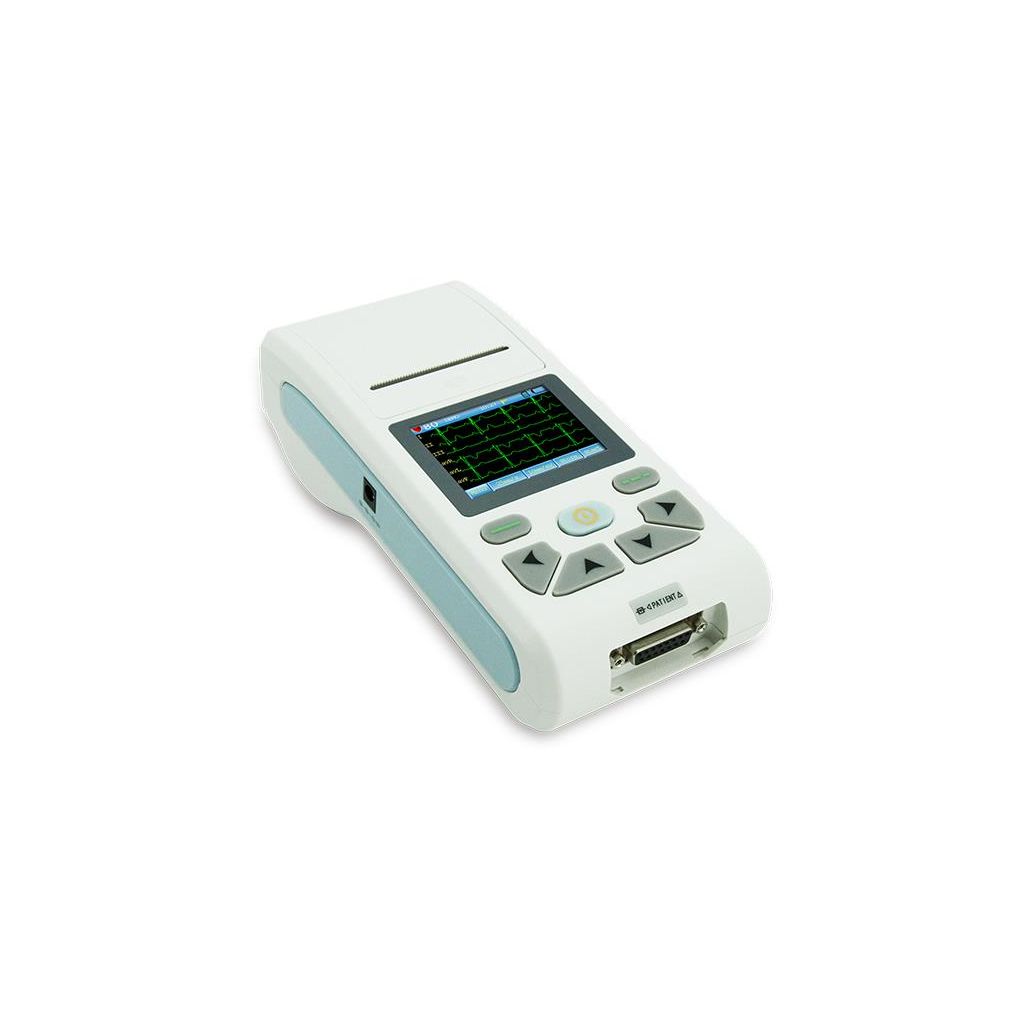

CARDIOPOCKET ECG 3 channel with software CONTEC 90A

 Cardiopocket ECG 3 channel with software CONTEC 90A

 2.83'' colour LCD screen (resolution: 320×240) for displaying the ECG waveform and operating status in a clear and understandable way. Convenient operation with the touch screen and function keys.

 Simultaneous ECG acquisition from 12 leads, digital signal processor for high quality ECG waveform acquisition through AC filter, baseline filter and electromagnetic filter for ECG signals.

 High resolution thermal printer (8dot/mm). No adjustment required. Recording frequency: up to 150Hz.

 ECG display of 3/6/12 leads, display of print mode, sensitivity, paper speed and filter status mode suitable for diagnosis contrast.

 Specialized, high-precision digital filter to eliminate baseline variation and interference in the ECG waveform. Significantly enhances the ability to block baseline fluctuations and facilitates waveform evaluation.

 Continuous real-time recording of a precise and accurate ECG waveform and markers (including abduction symbol, sensitivity, paper speed, filter status, etc.).

 The device has a function of automatic analysis and automatic diagnosis of the regular parameters of the ECG waveform. It provides measurement results and auto-diagnosis conclusion for parameters such as HR (heart rate), P-R interval, P duration, P duration, QRS duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) for the convenience of medical personnel and for greater efficiency.

 Powered by alternating current (AC) and direct current (DC). Under the best conditions of direct current (DC) power supply, the built-in rechargeable lithium battery can operate for 4 hours continuously, but prints for up to 90 minutes and 150 ECGs, meeting the needs encountered during continuous home patient visits and physical examination. The rechargeable lithium battery is removable, making it easy to replace and recharge at any time.

  Optional SD card stores up to 100 cases, which is convenient for doctor to review case and statistic.

  In the review mode, you can check the waveform of the stored incident. It is also possible to automatically analyze the measurement parameters and diagnostic information.

 You can select language for the interface, and print the report in these languages.

 Optional ECG-Sync software, connect with PC by USB2.0 interface to form a ECG workstation, import real-time data to the software for analyzing and report printing, and old cases stored in Electrocardiograph can be uploaded to PC

 Sleek design, easy to carry.

 Weighs less than 1kg.

 Log paper dimensions: 50mmx20m.
